AHTS

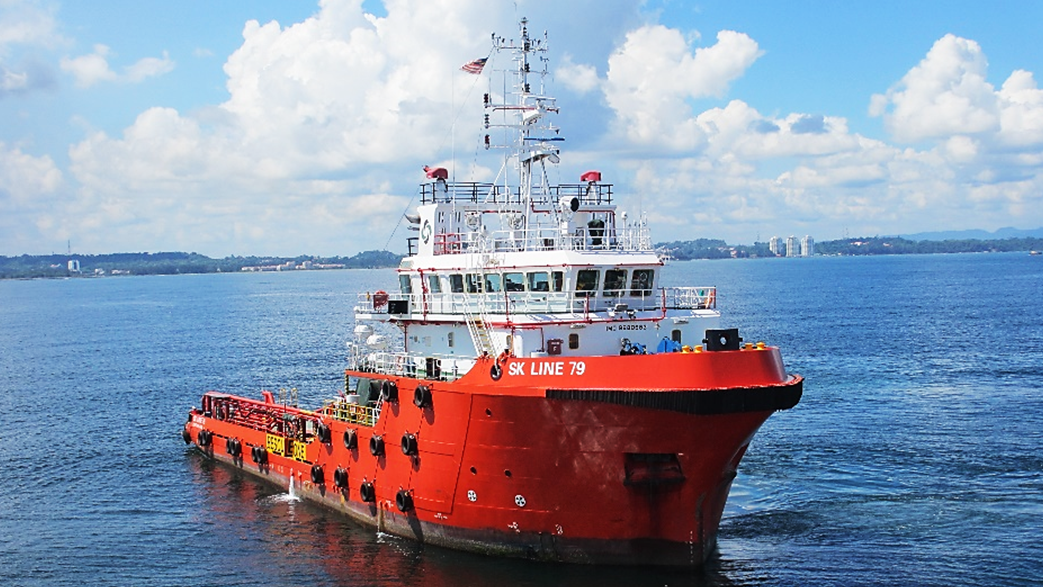

SK LINE 79

CONTACT US

    CONTACT US

      MAIN SPECIFICATION

      BHP / KW: 5,150 BP (T): 68
      DP: 2 LOA (M): 59.2
      DECK SPACE (M2): 330 FLAG: Malaysia

      SPECIFICATION SUMMARY

      Class ABS ✠A1 Towing Vessel AH
      Ⓔ Fire Fighting Vessel Class 1
      ✠AMS ✠DPS-2
      Offshore Support Vessel
      Flag Malaysia
      P.O.R Port Kelang
      Year Built 2015
      Builder Fujian Southeast Shipbuilding
      IMO 9680683
      Official Number 335589
      Call Sign 9MQZ3
      L.O.A. 59.25 m
      Beam 14.95 m
      Depth 6.10 m
      Draft (max) 4.95 m
      GRT 1679
      NRT 503
      Deadweight 1356 Tonnes
      Deck Cargo 500 Tonnes
      Deck Loading 7.5 Tonnes/m2
      Deck Area 330 m2
      Fresh Water 301 m3
      Drill/Bal Water 401 m3
      Fuel Oil 527 m3
      Mud 378 m3
      Brine 166 m3
      Dry Bulk 186 m3
      1 Man cabin 4 x 1 (4)
      2 Men Cabin 3 x 2 (6)
      4 Men cabin 8 x 4 (32)
      Total 42 berths
      Hospital 1 berth
      Speed 12.0 knots
      Bollard Pull 68.2 tonnes
      Propellers 2 x 1920KW Conventional CPP
      Bow Thruster 2 x 515KW, 8T Thrust each
      Stern Thruster 1 x 390KW, 6T Thrust each
      Main Engine 2 x 1920KW 1600 rpm
      Main Generator 3 x 350KW, 415V3Ph50Hz
      Shaft Generator 2 x 800KW, 415V3Ph50Hz
      Emerg Generator 1 x 65KW, 415V3Ph50Hz
      Tugger winch 2 x 10 Tonnes SWL
      Capstan 2 x 10 Tonnes SWL
      Provision Crane 1 x 3 Tonnes SWL @ 9 m radius
      AHT Winch 1 x Electro-Hydraulic Double Drum AH/T Winch
      Line pull: 150 Tonnes
      Brake: 200 Tonnes
      Drum cap: 1000m x 56mm dia. Wire
      Storage Reel 1 x 1000m x 56mm dia. Wire
      Shark Jaw 1 x 200 Tonnes SWL
      Towing Pins 1 x 200 Tonnes SWL
      Stern Roller 1 x 4m(L) x 1.6m(dia.) 200 Tonnes SWL
      Fresh Water 1 x 125 m3/hr @ 75 m head
      Drill Water 1 x 100 m3/hr @ 75 m head
      Fuel Oil 1 x 150 m3/hr @ 75 m head
      Mud 2 x 75 m3/hr @ 75 m head
      Brine 1 x 75 m3/hr @ 75 m head
      Dry Bulk 2 x 13 m3/min @ 5.6 bar
      Water Maker 1 x 5 m3/day
      Radars, Magnetic Compass, Gyro Compasses, DGPSs, AIS
      Autopilot, Echo Sounder, Speed Log, Navtex, Weather Fax
      SSAS, BNWAS
      GMDSS A1+A2+A3, VSAT
      External FiFi Pump: 2 x 1650 m3/hr @ 120m
      Monitor: 1 x 1200 m3/hr (water/foam)
      Monitor: 1 x 1200 m3/hr (water)
      Oil Dispersant 2 x 6 m spray booms with nozzles
      Rescue Boat 1 x 6 men Fast Rescue Boat
