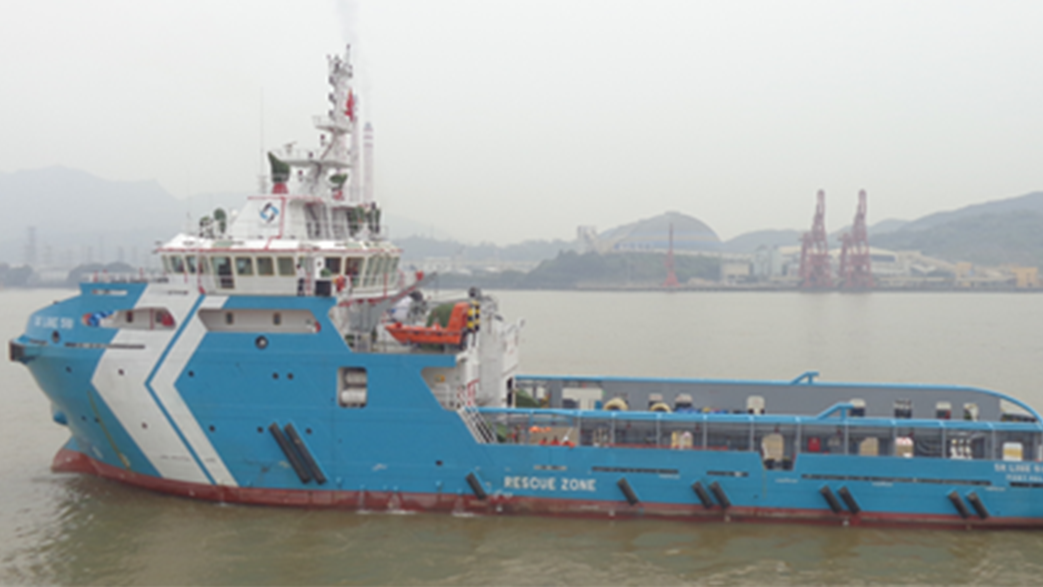

SK Mainstayadmin2022-10-05T09:04:59+08:00 AHTS SK MAINSTAY CONTACT US CONTACT US MAIN SPECIFICATION DOWNLOAD BROCHURE VIEW FULL SPECIFICATION BHP / KW: 5,150 BP (T): 65 DP: 1 LOA (M): 64.8 DECK SPACE (M2): 420 FLAG: Malaysia SPECIFICATION SUMMARY VESSEL PARTICULARS Class ABS ✠A1 AH FFV1 OSR-C2 TOW Ⓔ Supply-HNLS ✠AMS Offshore Support Vessel ✠DPS-1 SPS RW HDC(7.5t/m2, main deck) Flag Malaysia P.O.R Port Kelang Year Built 2017 Builder Fujian Southeast Shipbuilding IMO 9754628 Official Number 335790 Call Sign 9MVV9 DIMENSION L.O.A. 64.80 m Beam 16.00 m Depth 6.80 m Draft (max) 5.50 m GRT 2294 NRT 688 CARGO CAPACITIES Deadweight 2134 Tonnes Deck Cargo 600 Tonnes Deck Loading 7.5 Tonnes/m2 Deck Area 420 m2 Fresh Water 455 m3 Drill/Bal Water 697 m3 Fuel Oil 586 m3 Base Oil 132 m3 Mud 450 m3 Brine 450 m3 Dry Bulk 160 m3 Recovery Oil 582 m3 ACCOMMODATION 1 Man cabin 6 x 1 (6) 2 Men Cabin 6 x 2 (12) 3 Men Cabin 2 x 3 (6) 4 Men cabin 9 x 4 (36) Total 60 berths Hospital 1 berth PERFORMANCE Speed 13.0 knots Bollard Pull 65 tonnes PROPULSION & POWER PLANT Propellers 2 x 1920KW Conventional CPP Bow Thruster 2 x 515KW, 8T Thrust each Main Engine 2 x 1920KW 1600 rpm Main Generator 2 x 350KW, 415V3Ph50Hz Shaft Generator 2 x 800KW, 415V3Ph50Hz Emerg Generator 1 x 99KW, 415V3Ph50Hz DECK MACHINERY Tugger winch 2 x 10 Tonnes SWL Capstan 2 x 5 Tonnes SWL Provision Crane 1 x 5/7.5 Tonnes SWL @ 15/10 m radius Telescopic type AHT Winch 1 x Electro-Hydraulic double drum AH/T Winch Line pull: 150 Tonnes Brake: 200 Tonnes Drum cap: 1000m x 56mm dia. Wire Storage Reel 1 x 1000m x 56mm dia. Wire Shark Jaw 1 x 200 Tonnes SWL Towing Pins 2 x 160 Tonnes SWL Stern Roller 1 x 4m(L) x 1.8m(dia.) 200 Tonnes SWL CARGO HANDLING CAPACITY Fresh Water 1 x 125 m3/hr @ 75 m head Drill Water 1 x 100 m3/hr @ 75 m head Fuel Oil 1 x 125 m3/hr @ 80 m head Base Oil 1 x 100 m3/hr @ 80 m head Mud 2 x 75 m3/hr @ 75 m head Brine 2 x 75 m3/hr @ 75 m head Dry Bulk 2 x 13 m3/min @ 5.6 bar Water Maker 1 x 5 m3/day NAVIGATION EQUIPMENT Radars, Magnetic Compass, Gyro Compasses, DGPSs, AIS Autopilot, Echo Sounder, Speed Log, Navtex, Weather Fax SSAS, BNWAS COMMUNICATION EQUIPMENT GMDSS A1+A2+A3, VSAT FIRE-FIGHTING EQUIPMENT External FiFi Pump: 2 x 1750 m3/hr @ 120 MLC Monitor: 1 x 1200 m3/hr (water/foam) Monitor: 1 x 1200 m3/hr (water) Oil Dispersant 2 x 6 m spray booms with nozzles SAFETY EQUIPMENT Rescue Boat 1 x 6 men Fast Rescue Boat
