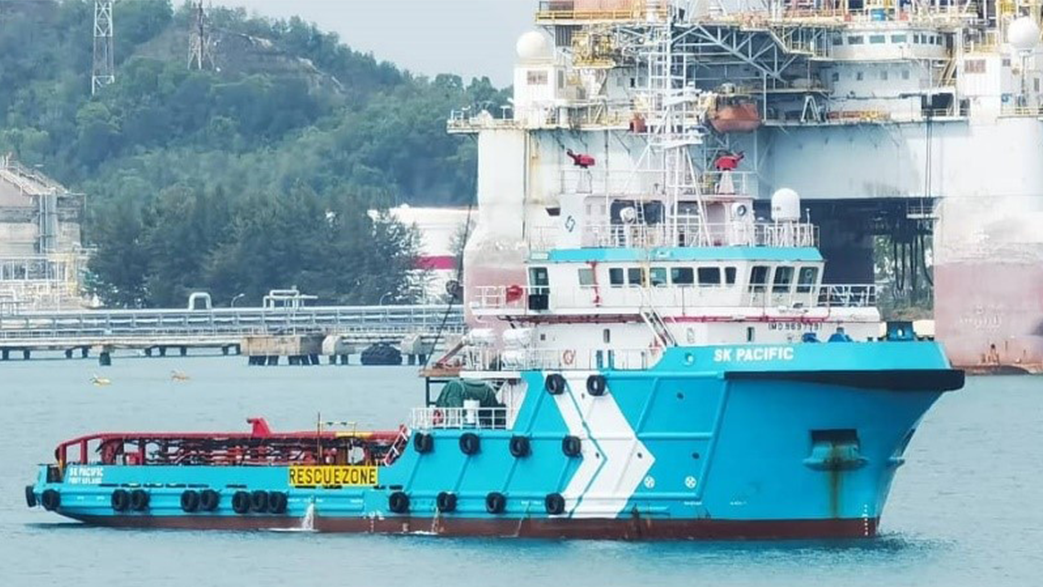

SK Pacificadmin2022-10-05T09:07:45+08:00 AHTS SK PACIFIC CONTACT US CONTACT US MAIN SPECIFICATION DOWNLOAD BROCHURE VIEW FULL SPECIFICATION BHP / KW: 5,150 BP (T): 60 DP: 1 LOA (M): 59.2 DECK SPACE (M2): 330 FLAG: Malaysia SPECIFICATION SUMMARY VESSEL PARTICULARS Class ABS ✠A1 Towing Vessel AH Ⓔ Fire Fighting Vessel Class 1 ✠AMS ✠DPS-1 Offshore Support Vessel BP 60T Flag Malaysia P.O.R Port Kelang Year Built 2015 Builder Fujian Baima Shipyard, China IMO 9697791 Official Number 335619 Call Sign 9MVC7 DIMENSION L.O.A. 59.25 m Beam 14.95 m Depth 6.10 m Draft (max) 4.95 m GRT 1678 NRT 503 CARGO CAPACITIES Deadweight 1305 Tonnes Deck Cargo 500 Tonnes Deck Loading 7.5 Tonnes/m2 Deck Area 330 m2 Fresh Water 301 m3 Drill/Bal Water 401 m3 Fuel Oil 527 m3 Mud 378 m3 Brine 166 m3 Dry Bulk 186 m3 ACCOMMODATION 1 Man cabin 4 x 1 (4) 2 Men Cabin 3 x 2 (6) 4 Men cabin 8 x 4 (32) Total 42 berths Hospital 1 berth PERFORMANCE Speed 13.0 knots Bollard Pull 60 tonnes PROPULSION & POWER PLANT Propellers 2 x 1920KW Conventional CPP Bow Thruster 2 x 515KW, 8T Thrust each Main Engine 2 x 1920KW 1600 rpm Main Generator 2 x 350KW, 415V3Ph50Hz Shaft Generator 2 x 800KW, 415V3Ph50Hz Emerg Generator 1 x 65KW, 415V3Ph50Hz DECK MACHINERY Tugger winch 2 x 10 Tonnes SWL Capstan 2 x 5 Tonnes SWL Provision Crane 1 x 3 Tonnes SWL @ 9 m radius AHT Winch 1 x Electro-Hydraulic double drum AH/T Winch Line pull: 150 Tonnes Brake: 200 Tonnes Drum cap: 1000m x 56mm dia. Wire Storage Reel 1 x 1000m x 56mm dia. Wire Shark Jaw 1 x 200 Tonnes SWL Towing Pins 1 x 200 Tonnes SWL Stern Roller 1 x 4m(L) x 1.6m(dia.) 200 Tonnes SWL CARGO HANDLING CAPACITY Fresh Water 1 x 125 m3/hr @ 75 m head Drill Water 1 x 100 m3/hr @ 75 m head Fuel Oil 1 x 150 m3/hr @ 75 m head Mud 2 x 75 m3/hr @ 75 m head Brine 1 x 75 m3/hr @ 75 m head Dry Bulk 2 x 13 m3/min @ 5.6 bar Water Maker 1 x 5 m3/day NAVIGATION EQUIPMENT Radars, Magnetic Compass, Gyro Compasses, DGPSs, AIS Autopilot, Echo Sounder, Speed Log, Navtex, Weather Fax SSAS, BNWAS COMMUNICATION EQUIPMENT GMDSS A1+A2+A3, VSAT FIRE-FIGHTING EQUIPMENT External FiFi Pump: 2 x 1600 m3/hr Monitor: 1 x 1200 m3/hr (water/foam) Monitor: 1 x 1200 m3/hr (water) Oil Dispersant 2 x 6 m spray booms with nozzles SAFETY EQUIPMENT Rescue Boat 1 x 6 men Fast Rescue Boat
