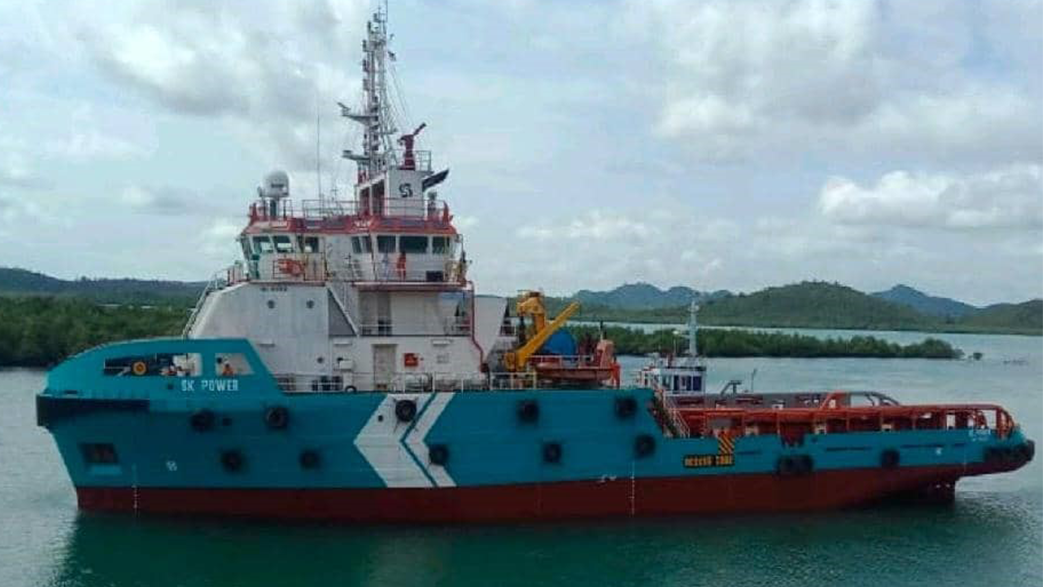

SK POWER

CONTACT US

    CONTACT US

      MAIN SPECIFICATION

      DOWNLOAD BROCHURE
      VIEW FULL SPECIFICATION
      BHP / KW: 5,150 BP (T): 65
      DP: 1 LOA (M): 60
      DECK SPACE (M2): 330 FLAG: Malaysia

      SPECIFICATION SUMMARY

      VESSEL PARTICULARS

      Class ABS ✠A1 Towing Vessel AH
      Ⓔ Fire Fighting Vessel Class 1
      ✠AMS ✠DPS-1
      Offshore Support Vessel
      BP 65T
      Flag Malaysia
      P.O.R Port Kelang
      Year Built 2012
      Builder Nam Cheong Dockyard
      IMO 9690638
      Official Number 335602
      Call Sign 9MVA7

      DIMENSION

      L.O.A. 60.00 m
      Beam 16.00 m
      Depth 6.00 m
      Draft (max) 5.10 m
      GRT 1828
      NRT 541

      CARGO CAPACITIES

      Deadweight 1729 Tonnes
      Deck Cargo 600 Tonnes
      Deck Loading 5 Tonnes/m2
      Deck Area 330 m2
      Fresh Water 449 m3
      Drill/Bal Water 499 m3
      Fuel Oil 517 m3
      Base Oil 177 m3
      Mud 195 m3
      Brine 177 m3
      Dry Bulk 155 m3

      ACCOMMODATION

      1 Man cabin 4 x 1 (4)
      2 Men Cabin 10 x 2 (20)
      4 Men cabin 3 x 4 (12)
      Total 36 berths
      Hospital 1 berth

      PERFORMANCE

      Speed 12.0 knots
      Bollard Pull 65 tonnes

      PROPULSION & POWER PLANT

      Propellers 2 x 1920KW Conventional CPP
      Bow Thruster 2 x 515KW, 8T Thrust each
      Stern Thruster 1 x 390KW, 6T Thrust each
      Main Engine 2 x 1920KW 750 rpm
      Main Generator 2 x 280KW, 415V3Ph50Hz
      Shaft Generator 2 x 1000KW, 415V3Ph50Hz
      Emerg Generator 1 x 82KW, 415V3Ph50Hz

      DECK MACHINERY

      Tugger winch 2 x 10 Tonnes SWL
      Capstan 2 x 5 Tonnes SWL
      Provision Crane 1 x 5 Tonnes SWL @ 8 m radius
      AHT Winch 1 x Electro-Hydraulic double drum AH/T Winch
      Line pull: 150 Tonnes
      Brake: 200 Tonnes
      Drum cap: 1000m x 56mm dia. Wire
      Storage Reel 1 x 1000m x 56mm dia. Wire
      Shark Jaw 1 x 200 Tonnes SWL
      Towing Pins 2 x 200 Tonnes SWL
      Stern Roller 1 x 4.2m(L) x 1.6m(dia.) 375 Tonnes SWL

      CARGO HANDLING CAPACITY

      Fresh Water 1 x 100 m3/hr @ 75 m head
      Drill Water 1 x 100 m3/hr @ 75 m head
      Fuel Oil 1 x 100 m3/hr @ 75 m head
      Base Oil 1 x 100 m3/hr @ 75 m head
      Mud 1 x 80 m3/hr @ 75 m head
      Brine 1 x 80 m3/hr @ 75 m head
      Dry Bulk 2 x 20 m3/min @ 5.6 bar
      Water Maker 1 x 5 m3/day

      NAVIGATION EQUIPMENT

      Radars, Magnetic Compass, Gyro Compasses, DGPSs, AIS
      Autopilot, Echo Sounder, Speed Log, Navtex, Weather Fax
      SSAS, BNWAS

      COMMUNICATION EQUIPMENT

      GMDSS A1+A2+A3, VSAT

      FIRE-FIGHTING EQUIPMENT

      External FiFi Pump: 2 x 1600 m3/hr
      Monitor: 1 x 1200 m3/hr (water/foam)
      Monitor: 1 x 1200 m3/hr (water)
      Oil Dispersant 2 x 6 m spray booms with nozzles

      SAFETY EQUIPMENT

      Rescue Boat 1 x 6 men Fast Rescue Boat
